Jon Whittingham at T-T Pumps explores how below-ground drainage and pumping strategies need to influence early architectural decisions, particularly where adoptable and package systems are required to manage site constraints, flood risk, and complex water movement on constrained urban sites.
In contemporary architecture, the most successful projects increasingly demonstrate a consistent trait: critical infrastructure decisions are made early, not deferred. Among the most overlooked of these is drainage strategy, particularly below-ground systems that determine how water is collected, managed, and discharged from a site.
As urban development becomes denser and sites more constrained, architects are more frequently encountering plots where conventional gravity drainage is not feasible. Changes in ground levels, basement requirements, flood risk considerations, and complex urban utilities all contribute to a growing reliance on engineered drainage approaches, including below-ground pumping systems. These systems are not simply technical add-ons; they are spatial and strategic constraints that directly influence architectural form and layout.
When gravity is no longer enough
Traditionally, drainage design has relied on gravity to move wastewater and surface water away from buildings. However, in practice, many modern developments now fall outside the conditions that make this possible. Deep basements, low-lying sites, and developments situated below surrounding sewer levels often require mechanical assistance to ensure reliable water movement.
In these cases, below-ground pumping stations become a fundamental part of the drainage strategy. They collect water at a low point and actively discharge it to a higher-level sewer or outfall. While the principle is straightforward, the implications for architectural design are significant. The inclusion of such systems affects floor levels, external landscaping, structural design, and the coordination of underground space.
Crucially, the need for pumping is often identifiable at the concept stage. Yet it is at this earliest point that it is most frequently overlooked, only becoming fully addressed during technical design, when options for spatial adjustment are more limited.
Adoptable & private systems: an early strategic choice
One of the key decisions influencing the below-ground drainage strategy is whether a system is designed to be adoptable by a utility provider or retained as a private installation.

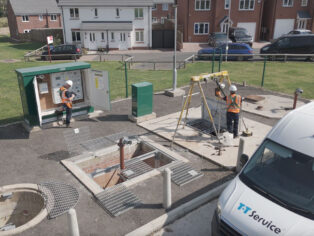

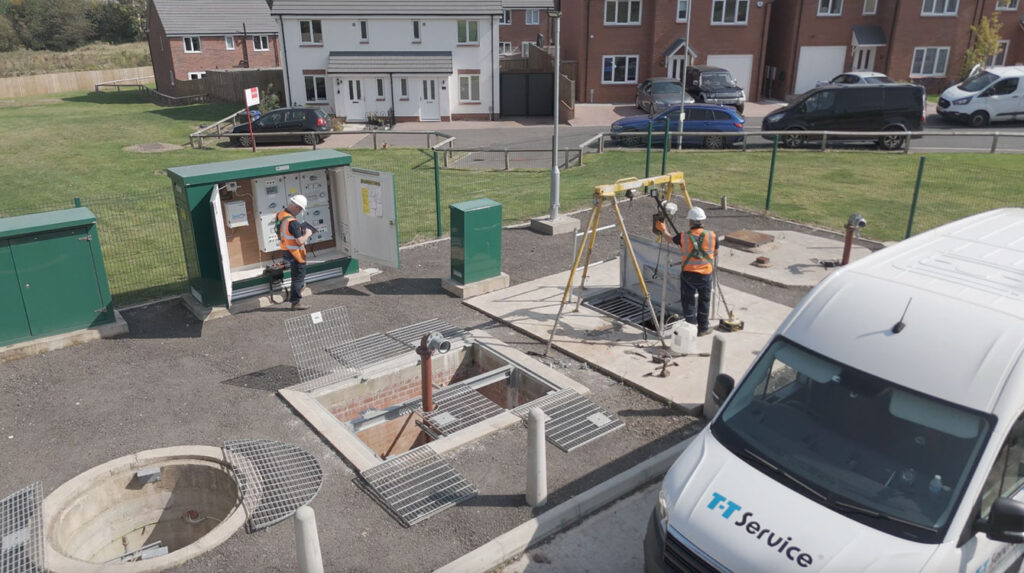

Adoptable pumping stations are designed to meet the requirements of water authorities, enabling long-term maintenance and ownership to transfer after completion. These systems must comply with specific standards relating to access, resilience, and operational reliability. While this pathway can offer reassurance around long-term management, it can also introduce design constraints that need to be understood early in the architectural process.

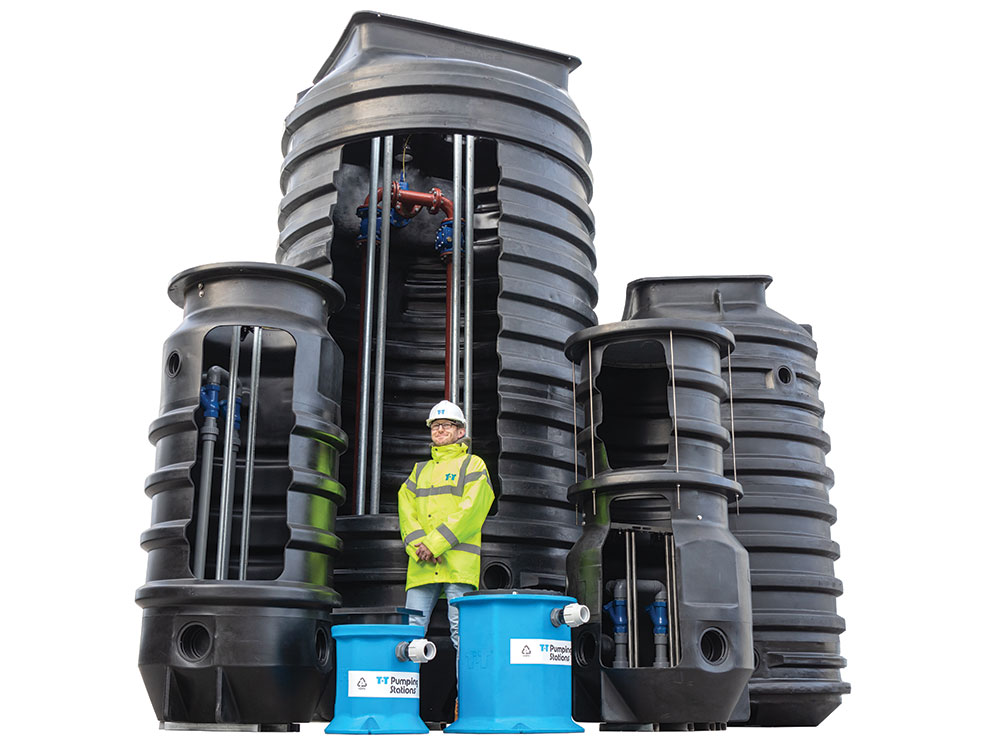

By contrast, package pumping systems retained under private ownership can offer greater flexibility in configuration and spatial integration. However, they also place ongoing responsibility for maintenance and performance on the building owner.
The choice between these approaches has a direct impact on below-ground planning, maintenance access requirements, and service coordination. The choice as to which option is often influenced by the owner of the asset to which the pumping system discharges into.
The hidden spatial cost of drainage infrastructure
Below-ground drainage systems are often underestimated in terms of their spatial requirements. Pump chambers, storage capacity, access provisions, and maintenance zones all occupy physical space that must be integrated into the overall building design.
On constrained sites, this can present challenges. Basement layouts may need to accommodate additional plant space, while external areas such as landscaped zones or car parks may be affected by the need to house buried infrastructure. Structural coordination is also critical, as drainage systems must align with foundations, retaining walls, and other below-ground elements.
Where these requirements are not considered early, they can lead to costly redesigns or compromises in architectural intent. Conversely, early integration allows the drainage strategy to be embedded within the design, reducing conflict between disciplines and improving overall efficiency.
Climate resilience and changing expectations
The increasing intensity and frequency of extreme rainfall events are also reshaping expectations around drainage design. Sites that may previously have been suitable for gravity-based solutions are now being reassessed in light of updated flood risk data and planning requirements.
As a result, architects are now expected to engage more directly with water management strategies as part of broader climate resilience considerations. This includes not only surface water management and sustainable drainage principles, but also the capacity to safely and reliably move water through a site under peak conditions.
Below-ground pumping systems are therefore becoming part of a wider resilience toolkit, ensuring that developments remain functional and safe even under challenging environmental conditions.
The importance of early coordination
The effectiveness of any drainage strategy is ultimately determined by how early it is integrated into the design process. When considered at the concept stage, below-ground requirements can be aligned with structural grids, building levels, and landscape design in a coordinated way.
This early collaboration between architects, structural engineers, and drainage specialists reduces the likelihood of late-stage changes and helps ensure that drainage infrastructure supports rather than constrains the architectural vision. It also improves confidence during planning submissions, where drainage and flood resilience are increasingly scrutinised.
Case study: constrained urban residential development
On a recent urban residential scheme, the site’s topography and surrounding sewer levels meant that gravity drainage alone was not viable. The project included basement accommodation and limited external space, requiring careful coordination of below-ground services.
By addressing drainage strategy at the concept stage, the design team was able to integrate a below-ground pumping solution within the basement footprint without compromising usable space or external landscaping. Early coordination ensured that access requirements, maintenance considerations, and structural interfaces were all resolved before planning submission. This approach enabled the architectural layout to remain largely unchanged through later design stages, avoiding the need for significant reworking and supporting a smoother delivery process.
Jon Whittingham is pumping stations manager at T-T Pumps
