Neil Turner, UK Technical Manager at Ecological Building Systems, sets out the case for natural thermal plaster as an effective and architecturally sympathetic insulation solution for solid-wall retrofit.
“The retrofit of historic and traditional buildings poses a common conundrum for architects: how to meet modern thermal performance targets without affecting the aesthetics, character and heritage detail of traditional and historic buildings.
Use of natural thermal plaster means there is no need to compromise, which can be the case when choosing some synthetic and board insulation materials.
Moisture behaviour in traditional buildings
Solid-wall buildings constructed before the widespread adoption of cavity walls were designed to manage moisture through vapour diffusion and water capillary movement. Rather than preventing moisture movement entirely, traditional materials such as lime mortar and stone allow moisture to be absorbed and gradually released, helping to maintain the long-term condition of the building fabric.
Introducing impermeable insulation materials into this type of construction can disrupt that balance, potentially leading to interstitial condensation, trapped moisture and decay within concealed elements of the structure.
Many thermal plasters used in traditional buildings are formulated with lime binders and lightweight natural or mineral aggregates, creating capillary-active and vapour-open systems that remain compatible with the moisture behaviour of older masonry. When applied internally, thermal plasters can significantly improve thermal performance and increase internal surface temperatures without creating any risks of interstitial condensation.
Performance credentials
Thermal plasters can significantly improve the thermal performance of solid-wall buildings while retaining a seamless rendered appearance. The precise thickness of thermal plaster should be calculated against the target U-value for the specific element and overall building energy strategy.
Products such as Diasen’s Diathonite range of moisture vapour diffusion open and water capillary active thermal plasters combine cork, diatomaceous earth, NHL (natural hydraulic lime), and mineral aggregates to provide thermal improvement alongside moisture management. Unlike rigid insulation boards, thermal plasters can accommodate uneven substrates, curved surfaces and complex junctions without introducing gaps or interrupting architectural detailing.
Their relatively high elasticity compared to conventional plasters also helps accommodate the natural movement often found in historic masonry, reducing the likelihood of cracking over time.
For listed buildings and heritage properties where a seamless, plaster-finished appearance is required, thermal plaster is a highly effective way to upgrade the performance of a building. As it can be applied internally or externally, it provides specifiers and contractors with the flexibility to work within specific building requirements.
Drying time can also be a significant practical advantage on refurbishment projects. Certain thermal plaster systems, such as Diathonite range, can cure at approximately 2mm per day compared to around 1mm per day for more traditional lime plasters, helping reduce delays between application stages and supporting more efficient sequencing on occupied or phased works.
Preserves architectural detail
Thermal plasters are particularly well-suited to Listed Buildings and conservation projects where maintaining the original appearance of the building is essential. Because the material is applied as a continuous plaster layer, it can follow irregular stonework, curved walls and detailed junctions more easily than board-based insulation systems.
This allows specifiers and contractors to improve thermal performance while retaining features such as mouldings, reveals and textured finishes that might otherwise be lost with alternative insulation approaches.
Lake District Farmstead Renovation Case Study

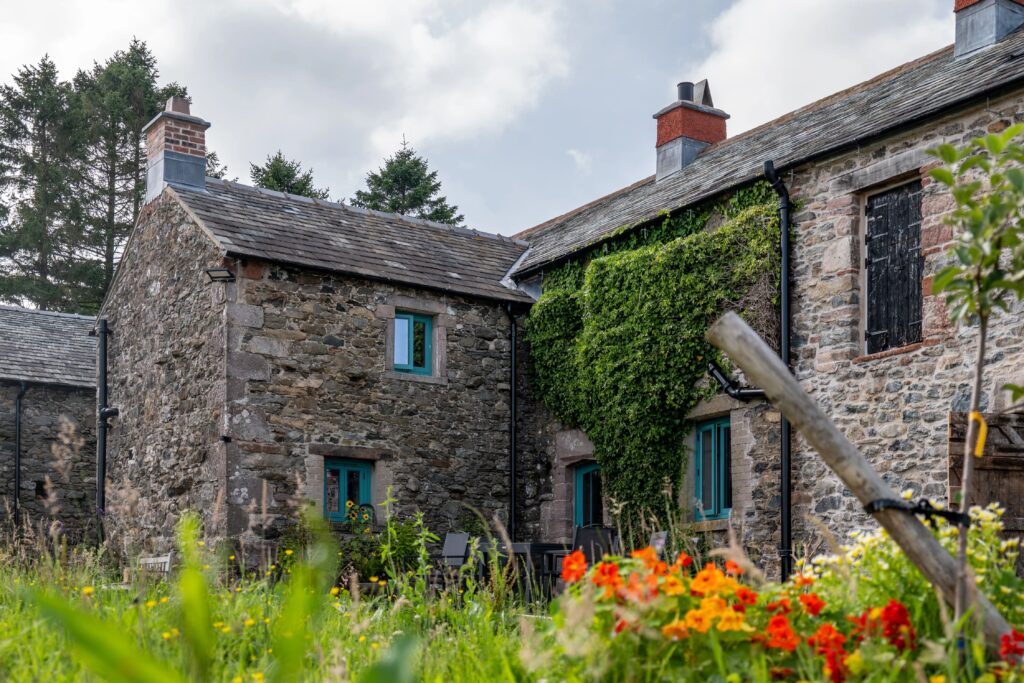

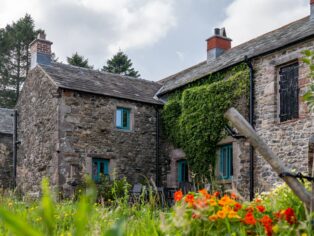

Recently, a traditional cattle shed and barn was converted into a dwelling at a farmstead in the Lake District.
Diasen Diathonite Thermactive.037, a lime- and cork-based insulating plaster, was used to upgrade the thermal performance of the buildings. Both were older-style solid wall structures which were upgraded with thermal plaster to help to retain heat and improve year-round comfort. The refurbishment meant the building was upgraded to modern thermal performance requirements while retaining compatible materials.

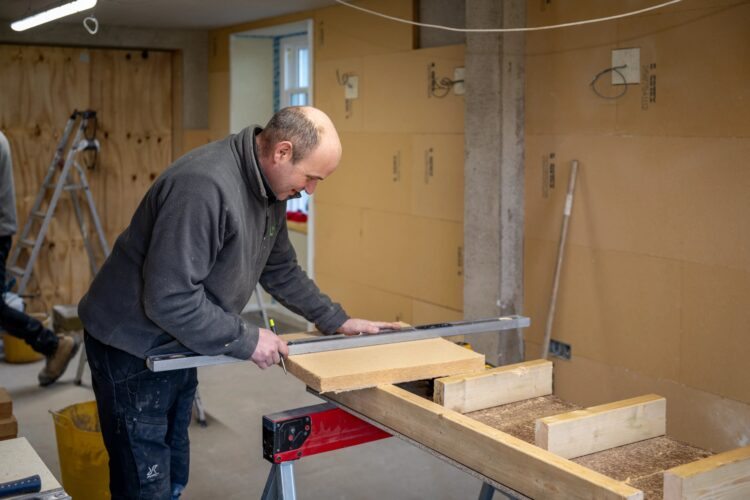

Diasen Diathonite‘s vapour-open, capillary-active profile made it suitable for the original solid-stone construction, improving thermal efficiency while allowing the walls to regulate moisture and dry naturally. In this project, further insulation was provided by use of natural wood fibre insulation boards, which were complemented by the use of airtight vapour control membranes and airtightness tapes.
Essential part of a traditional building’s retrofit strategy
Thermal plaster is just one essential component within a complete retrofit strategy for a traditional building. It works well in combination with other breathable, vapour-open systems, such as lime mortars, wood fibre insulation and natural renders, where material compatibility across the building envelope is essential to avoid moisture redistribution or interstitial risk.
Its low VOC (volatile organic content) and renewable raw material composition also support healthy building objectives and embodied carbon targets, as well as whole-life carbon assessments.
Final thoughts
Specifying natural thermal plaster for renovated properties is crucial to achieve optimal thermal performance while preserving the beauty and integrity of traditional architecture. As older buildings are increasingly being renovated to enhance their energy efficiency, modern thermal plasters are playing a vital role in ensuring homes are both breathable and sustainable.”
